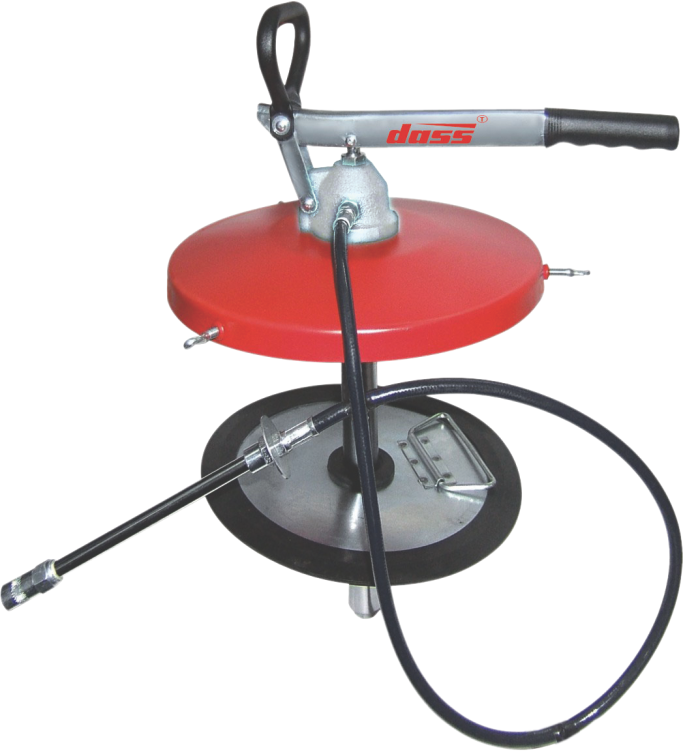

•     Specially design to easily bulk load.
•     With bulk filling plug to suit all common grease guns.
•     Heavy constructed zinc plated steel body.
•     Die cast head & adjusting flange.
•     Zinc plated handle for pumping.
•     18” pump
•     For 20kg drum cover (how is protects the grease against environment).
•     Delivery 14oz/420 gms/ 15 stroke
•     Follower plate helps eliminate air or maximizes pump efficiency.
•     Maintained by a steel tube and plug to clean and leak free feeding.

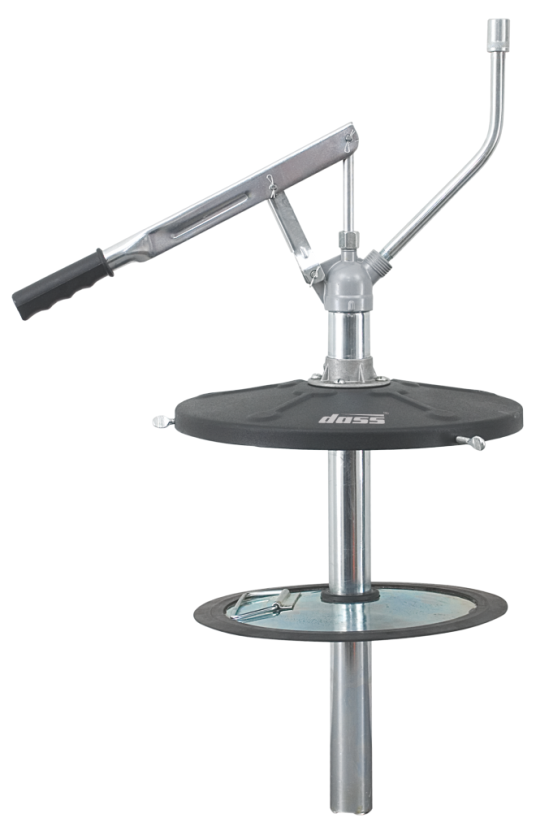

•     Easy portable Hand operated grease pump.
•     Lever operated pump mounted on cover of drum.
•     Disk is placed in side the drum to make positive pressure or easy pumping of grease.
•     Gives volume grease where power or air pump can not afforded and pressure greasing is required.
•     Working pressure 4000 PSI

INSTRUCTIONS

•     Always use oil mixed semi solid dust free grease.
•     Do not replace spilled grease from the floor into the container.
•     The pressure hose and the unit should always be kept clean.
•     Release pressure when not in use.

•     Heavy steel construction
•     Use for all hand operated grease guns and power lube.

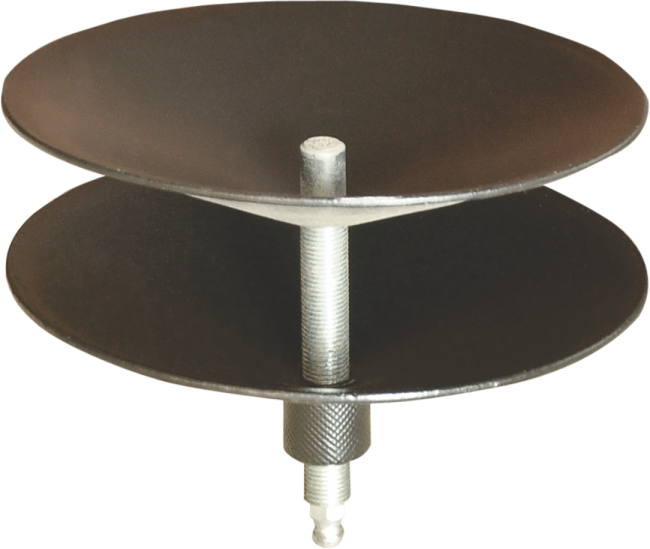

•     Center post threaded gives positive locking of bearing.
•     Designed for all type of minimum id of 1a” to maximum od 5” & 1/4” to 2” height bearing.

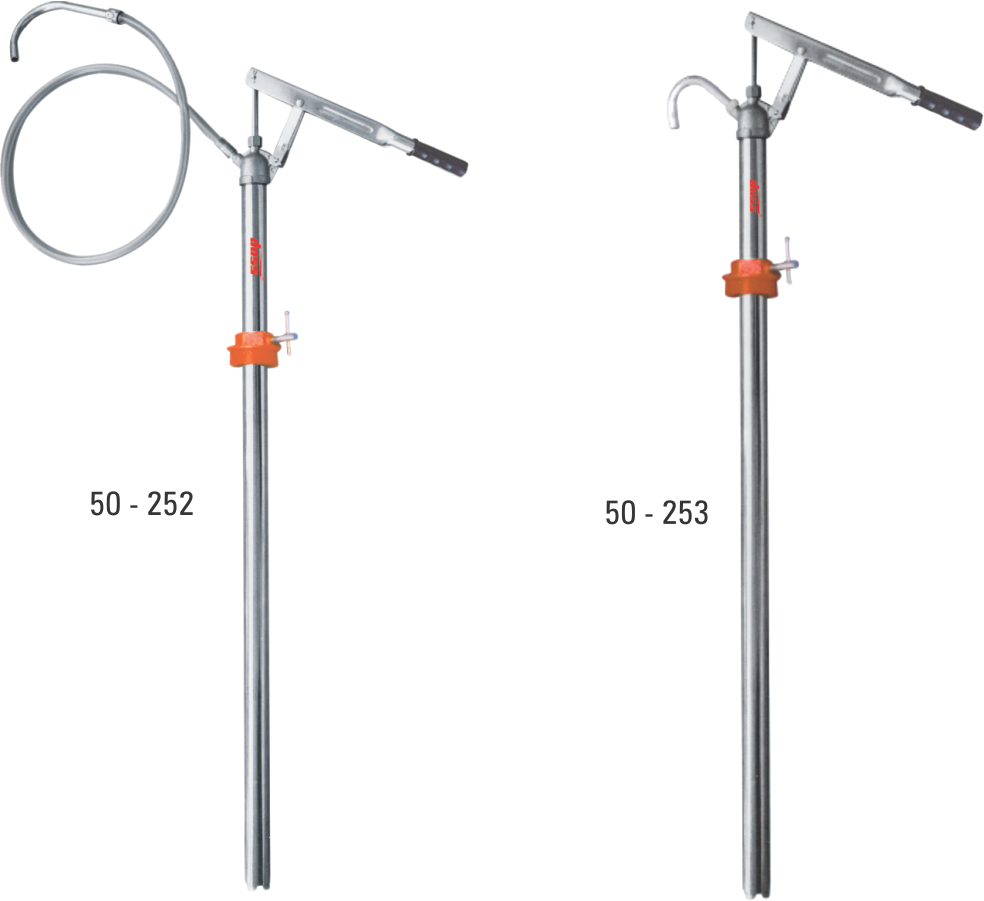

•     This pump is designed for transfer the heavier oils. Chrome plated body with die cast head
•     Heavy cast iron 2” bung nut.
•     Delivery 75ml/stroke
•     Used for 205 Liter Drums
•     Avoid with low viscosity media, water based fluid & other corrosive liquids.

•     This pump is designed for transfer the heavier oils.
•     Zinc, Chrome plated body with die cast head
•     Heavy cast iron 2” bung nut.
•     Delivery 75ml/stroke
•     Used for 205 Liter Drums
•     Available in 2 models.

Lift Action Pump

•     Plastic body used with media where steel pump can not be used.
•     Non drip nozzle for gear oil.
•     Suitable for petroleum products, water based fluid, solvents & acids.
•     Available in two different lengths for 50 liters and 200 liters barrel.

Use with oil based, fluids, heating oils, motor oils heavy & low viscosity oils

Warning : Avoid for use with water based fluids, acids, solvents & antifreeze

•     50-151:  3pc heavy constructed steel golden zinc Plated finish with 1” BSPT thread
•     50-154:  2pc telescopic (with rubber seal) chrome plated body 1” BSPT thread
•     50-155:  2pc telescopic (with rubber seal) chrome plated body 3/4” NPT
•     50-156:  2pc telescopic (with rubber seal) chrome plated body 3/4” NPT with non returnable valve
•     50-157:  2pc telescopic (with rubber seal) chrome plated body 1” BSPT thread with non returnable valve
•     50-158:  3 pcs Heavy
•     50-160:  3 pcs heavy constructed steel golden zinc Plated finish with 1” BSPT thread with filter
