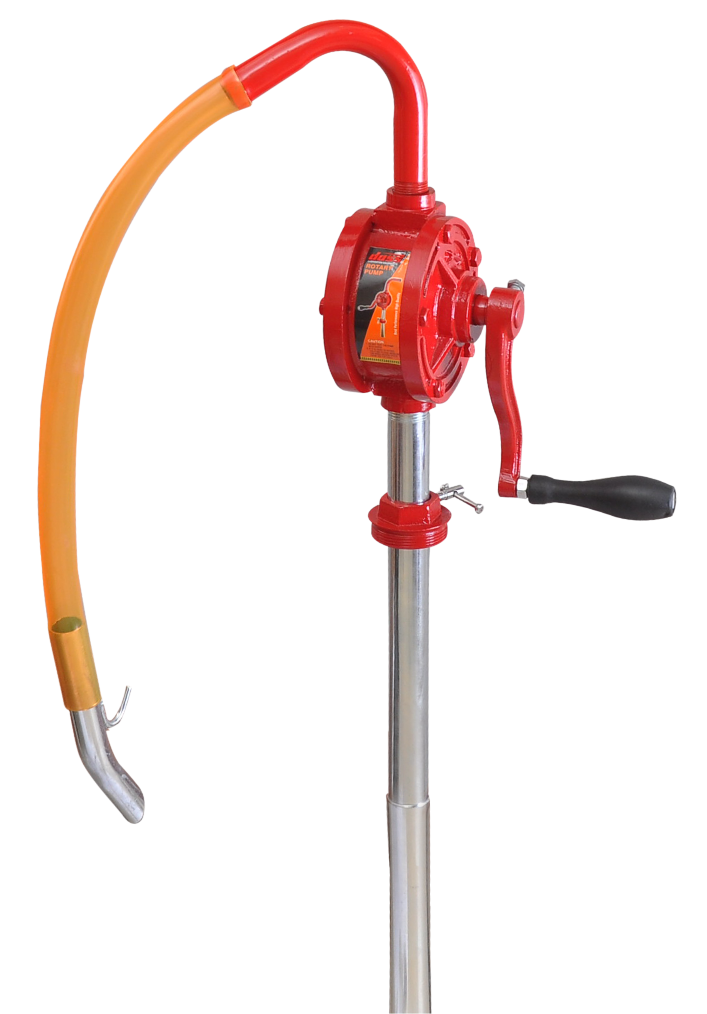

Heavy duty pump for transferring non-corrosive petroleum based fluids of light to medium viscosity.
Cast iron housing
Two heavy duty cast iron band for smoother delivery.
Steel suction tube and discharged spout.
For use with 200 or 220 litre Containers
With a 2” BSP drum nut. & 1 meter suction tube.

Heavy duty pump for transferring non-corrosive petroleum based fluids of light to medium viscosity.
Cast iron housing
Two heavy duty cast iron band for smoother delivery.
Steel suction tube and discharged spout.
For use with 200 or 220 litre Containers
With a 2” BSP drum nut. & 1 meter suction tube.

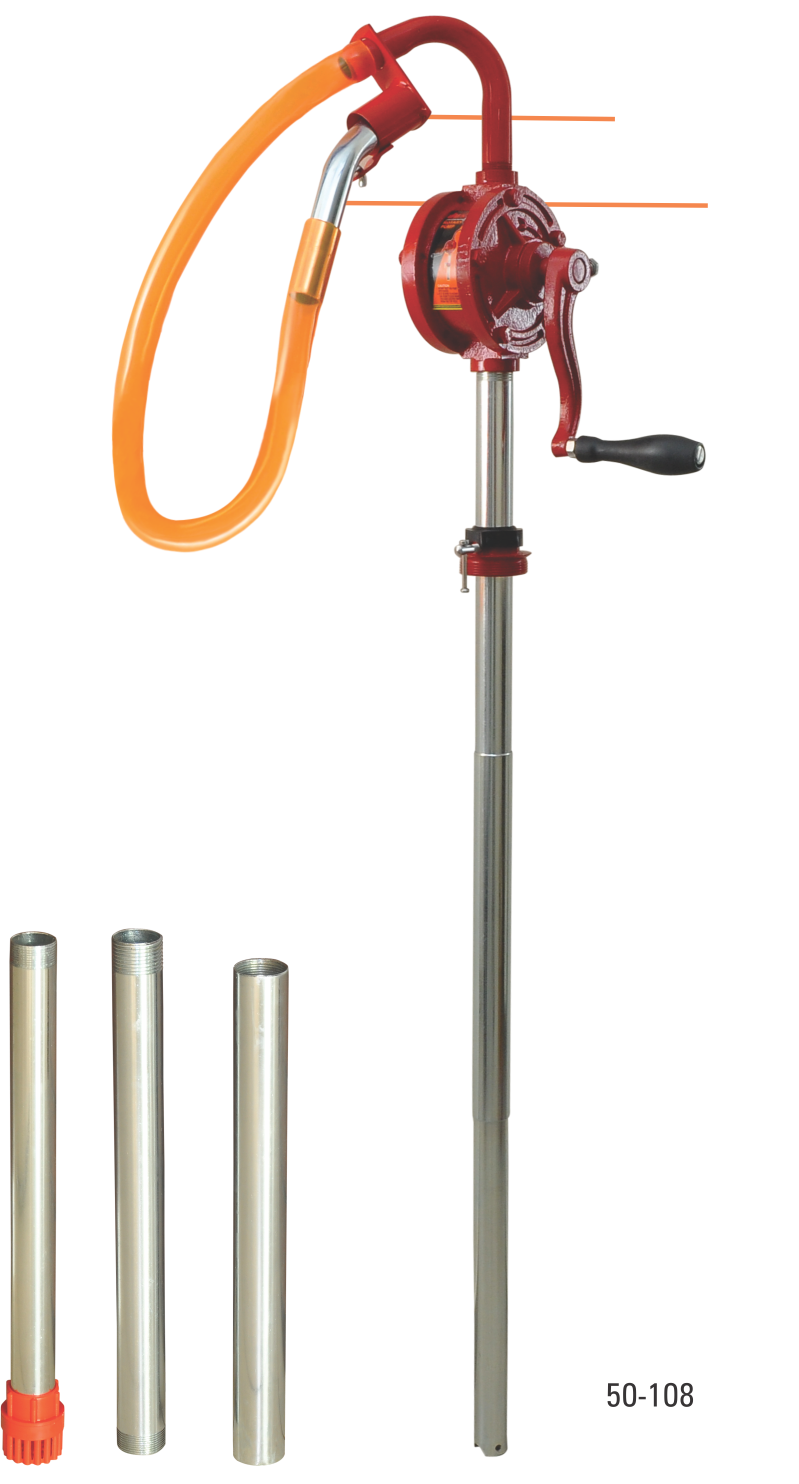

Hook Pipe Holder is used to hold hook pipe when pump is an rest state.

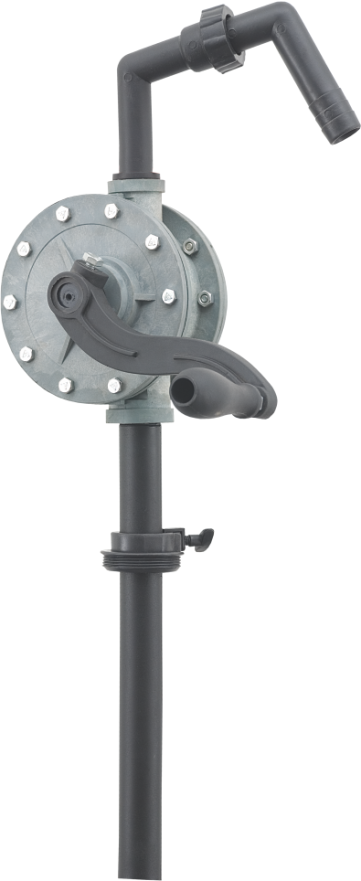

Plastic Rotary Pump use with media where cast iron pump cannot be used.
This Pump made from glass filled polypropylene (Chemical resistancematerial) veins construction with ryton (that is specially troublesome” dry chemicals)
Suitable for petroleum products. water based fluid, antifreeze, chemicals & Acids
1” discharge Spouts & 2” plastic Adopter.
Pump construction Polypropylene, Ryton, Stainless Steel, Viton.
Do not use with Acetone, Lacquer, Mineral Oils, solvents, Turpentine etc.
Delivery 5 Liter/ 20 revolutions.

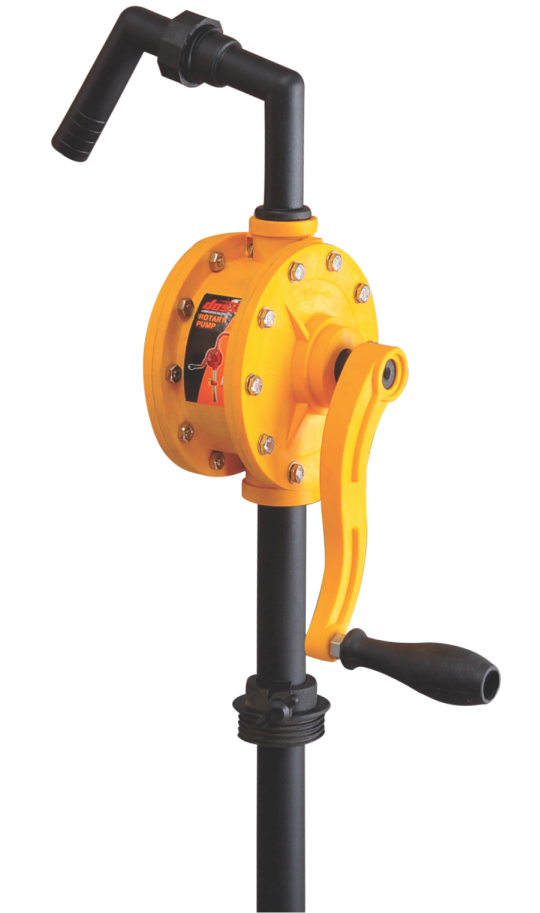

Plastic Rotary Pump use with oil & oil based media.
Do not use with chemical, antifreeze, acids, water based media., Solvents, Lacquer, gasoline etc.
1” discharge Spouts & 2” plastic Adopter.
Pump construction Polypropylene, NBR, Steel
Delivery 5 Liter/ 20 revolutions.

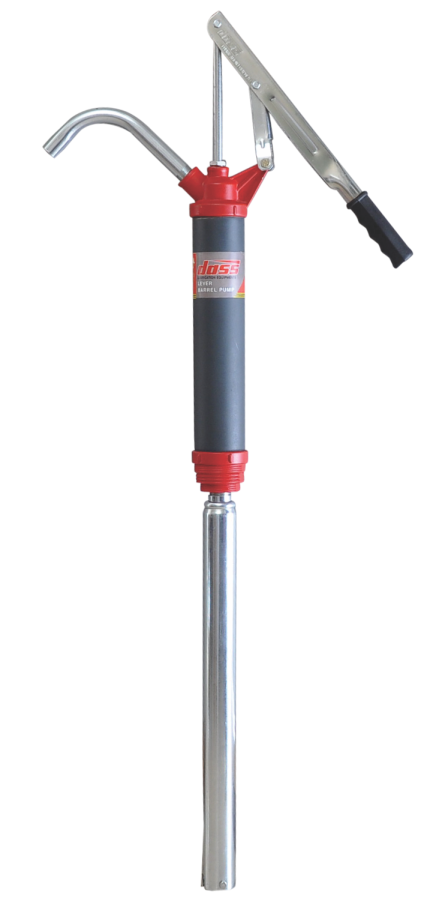

Heavy steel painted body, head & adopter (with 1’/2”&2” bung thread) are die cast.
Special piston design with two brass piston rings.
Curved metal spout.
Delivery spout thread 3/4”-11.5nh.
Use for 50-205 liter container
Delivery 300ml per stoke.
Chrome, zinc plated 2pc suction pipe.
